Quick Safety Instructions
- Important Safety Notice
Before using the RopeSpinner, read and understand the complete User Guide, including all Safety Instructions. The information below is provided as a quick safety reminder only and does not replace the full User Guide.
Before each use:
- Use the RopeDriver only to Spin&Stow compatible climbing rope
- Never use the RopeDriver to lift persons or as a fall-protection device.
- In Pilot Phase the correct Rope Pressure Block setting for the rope has been set by the RopeSpinner Team
- Always anchor the RopeDriver to a suitable structural anchor point or to your harness D-ring.
- In user-anchored operation, a work restraint line attached to a secure anchor point is mandatory.
- Wear appropriate PPE, including gloves, safety glasses, and certified rope access equipment.
- When working where objects could fall to a lower level, secure all equipment and detachable parts with suitable tool lanyards
In Operation:
- Use only approved, undamaged ropes and ensure the rope path is free of sharp edges and obstacles.
- Drill setting for load: Reverse direction / Drill mode / Hammer function OFF / Maximum 1800 RPM
- Drill setting for null-load: Reverse direction / Slip mode / Hammer function OFF / Maximum 1800 RPM
- Operate the device with two hands and maintain a stable body position at all times.
- Start and stop at low speed.
- Keep the rope in sight during operation.
- If slip occurs, release the drill trigger immediately and assess the setup before continuing.
- In case of rope jamming, abnormal noise, vibration, or other abnormal behavior, stop immediately and do not resume operation until the cause has been resolved.
Quick User Guide
Select your working method
e.g. from within the nacelle
e.g. from the Harness D-ring
e.g. rope collection
Structure-Anchored Operation
- Ensure Safety and Efficiency
PREPARE > INSTALL > SPIN&STOW
- 1 > PREPARE
- Expected gross line load verified against the Structure-Anchored Working Load Limit 45 kg.
- Rope length and rope route suitable for the Structure-Anchored method.
- Suitable anchor point available.
- Rope path free from sharp edges.
- Required PPE worn.
Free of damage
No knots, twists, rope protection elements
Lifting path free of sharp edges or rope-unfriendly obstacles
Load in working range subject to rope length and routing
No action in the Pilot Phase,
else Rope Pressure Setting to match Rope
Assure stable hoisting without slip
Check Rope Pressure Table
Set the drill to reverse and drilling mode, do not use hammer mode. Always press the trigger gradually during operation.
Drill speed range less then 1800 rpm
1/4 inch Socket Adapter installed
Full battery
Connect BagFrame to RopeDriver
Have rope bag ready near workspot
Connect the adjustable lanyard (grillon) to the ground structure
prefer the same anchor-point as the rope
- 2 > INSTALL
Select RopeSpinner connection point
somewhat above later work position
Selected best position to connect
Open Cover and Rope Latch

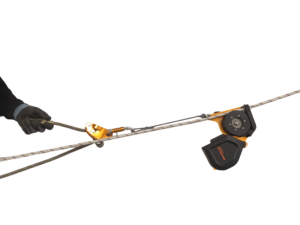

Guide rope through the Rope Entry Port
Along the Rope Clamp against the spring pressure
Close the Rope Latch
Lean the Anchor Ring on the rope

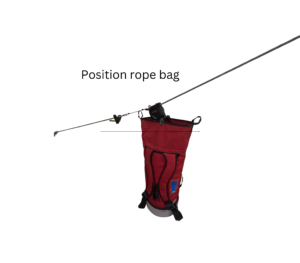

Where practical, connect the rope bag to the RopeDriver using the BagFrame. A stable, self-supporting bag may also be placed directly underneath.
- 3 > SPIN&STOW
Stand on the left side of the rope
Hold RopeDriver handle firmly with left hand
Mount the drill onto the socket with your right hand. Position the drill handle to the right of the reaction line to restrain the reaction torque.

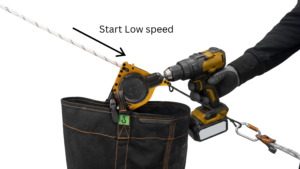

Start low-speed for rope to settle in coil
Verify stable hoisting without slip
Let system stabilize before increasing speed
In case uncontrolled slip stop immediately
and TROUBLESHOOT
When rotation stable gradual speed increase
Maintain visual control of the rope
In case of slip stop immediately
and TROUBLESHOOT

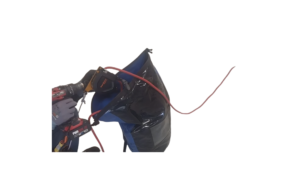

Stop hoisting slow and well before end of rope
Rope only to reach the system
No labels, loops, or protective elements
No rope ending to get stuck inside
Harness-Anchored Operation
- Ensure Safety and Efficiency
PREPARE > INSTALL > SPIN&STOW
- 1 > PREPARE
- Expected gross line load verified against the Harness-Anchored Working Load Limit 25 kg.
- Rope length and rope route suitable for the Harness-Anchored method.
- Suitable anchor point available.
- Rope path free from sharp edges.
- Required PPE worn.
Free of damage
No knots, twists, rope protection elements
Lifting path free of sharp edges or rope-unfriendly obstacles
Load in working range subject to rope length and routing
No action in Pilot Phase, else
Rope Pressure Setting to match rope
Assure stable hoisting without slip
Check Rope Pressure Table
Set the drill to reverse and drilling mode, do not use hammer mode. Always press the trigger gradually during operation.
Install 1/4 inch socket adapter
Full battery
Optionally connect BagFrame to RopeDriver
Have bag ready near workspot
Connect RopeDriver with the free end of the reaction line to your harness connection point
- 2 > INSTALL
Secure yourself
Stand on left side of the rope
Open Cover
Pick up rope with your right hand
Create slight slack between your hand and the rope anchoring point
Close the Cover
- 3 > SPIN&STOW
Hold RopeDriver handle with left hand
Mount the drill with right hand
Start low-speed for rope to settle in coil
Verify stable hoisting without slip
Let system stabilize before increasing speed
In case uncontrolled slip stop immediately
and TROUBLESHOOT
When rotation stable gradual speed increase
Maintain visual control of the rope
In case of slip stop immediately
and TROUBLESHOOT
Stop hoisting slow and well before end of rope
Rope only to reach the system
No labels, loops, or protective elements
No rope ending to get stuck inside
No-Load Operation
- Ensure Safety and Efficiency
PREPARE > INSTALL > SPIN&STOW
- 1 > PREPARE
Free of damage
No knots, twists, rope protection elements
Lifting path free of sharp edges or rope-unfriendly obstacles
Load in working range subject to rope length and routing
No action in Pilot Phase, else
Rope Pressure Setting to match rope
Assure no slip
Less critical as no load
Check Rope Pressure Table
Set the drill to reverse and slip clutch mode, do not use hammer mode. Always press the trigger gradually during operation.
Install 1/4 inch socket adapter
Full battery
Apply BagFrame if convenient
- 2 > INSTALL
Secure yourself
Stand on left side of the rope
Hold RopeDriver in left hand
Open Coils Cap
Pick up rope with your right hand
Close the Coil Cap
- 3 > SPIN&STOW
Hold RopeDriver handle with left hand
Mount the drill with right hand
Start low-speed for rope to settle in coil
Verify stable hoisting without slip
Let system stabilize before increasing speed
In case uncontrolled slip stop immediately
and TROUBLESHOOT
When rotation stable gradual speed increase
Maintain visual control of the rope
In case of slip stop immediately
and TROUBLESHOOT
Stop hoisting well before end of rope
Rope only to reach the system
No labels, loops, or protective elements
No rope ending to get stuck inside
Rope Pressure Settings
- Note
Approved ropes only - no other ropes.
Grip may vary due to wear, contamination, moisture and weather.
if slip or excessive resistance occurs:
Pilot phase: Contact RopeSpinner Team
Regular: Adjust Rope Pressure Setting
- Model: Beal Industrie 10,5 mm
- Diameter: 10,5 mm
- Standard: EN 1891 Type A
- Relatively light and flexible
- Grip potential lower
Rope Pressure Setting = Contact RopeSpinner Team
Subject to Age, Wear and Moisture
- Model: Beal Industrie 11,0 mm
- Diameter: 11,0 mm
- Standard: EN 1891 Type A
- Most common version
- Grip potential medium
Rope Pressure Setting = 5
Subject to rope Age, Wear and Moisture
- Model: Beal Industry 11,5 mm
- Diameter: 11,5 mm
- Standard: EN 1891 Type A
- Higher abrasion resistance
- Slightly heavier and stiffer
- Grip potential higher
Rope Pressure Setting = Contact RopeSpinner Team
Subject to rope Age, Wear and Moisture
- Model: Petzl Axis 11,0 mm
- Diameter: 11,0 mm
- Standard: EN 1891 Type A
- Higher abrasion resistance
- Slightly heavier and stiffer
- Grip potential higher
Rope Pressure Setting = 5
Subject to rope Age, Wear and Moisture
- Model: Petzl parallel 10,5 mm
- Diameter: 10,5 mm
- Standard: EN 1891 Type A
- Higher abrasion resistance
- Slightly lighter and more flexible
- Grip potential lower
Rope Pressure Setting = Contact RopeSpinner Team
Subject to rope Age, Wear and Moisture
- Model: <model?>
- Diameter: <?>
- Standard: <standard>
- <Characteristics>
- <Characteristics>
- Grip potential <grip potential?>
Rope Pressure Setting = 5
Subject to rope Age, Wear and Moisture
- Model: <model?>
- Diameter: <?>
- Standard: <standard>
- <Characteristics>
- <Characteristics>
- Grip potential <grip potential?>
Rope Pressure Setting = 5
Subject to rope Age, Wear and Moisture
- Model: English braids <model?>
- Diameter: <?>
- Standard: <standard>
- <Characteristics>
- <Characteristics>
- Grip potential <grip potential?>
Rope Pressure Setting = 5
Subject to rope Age, Wear and Moisture
- Model: <model?>
- Diameter: <?>
- Standard: <standard>
- <Characteristics>
- <Characteristics>
- Grip potential <grip potential?>
Rope Pressure Setting = 4
Subject to rope Age, Wear and Moisture
- Model: <model?>
- Diameter: <?>
- Standard: <standard>
- <Characteristics>
- <Characteristics>
- Grip potential <grip potential?>
Rope Pressure Setting = 4
Subject to rope Age, Wear and Moisture
- Model: <model?>
- Diameter: <?>
- Standard: <standard>
- <Characteristics>
- <Characteristics>
- Grip potential <grip potential?>
Rope Pressure Setting = Contact RopeSpinner Team
Subject to rope Age, Wear and Moisture
We'll be happy to help you find the optimal Rope Pressure Setting.
Please complete all fields in the web form.
Troubleshoot
Possible Problems
Pilot Phase:
- Check rope Beal Industrie 11 mm or Petzl Axis 11 mm.
- Check within load limits
- Check within working conditions
- contact the RopeSpinner Team.
Pilot Phase:
- Check rope Beal Industrie 11 mm or Petzl Axis 11 mm.
- Check within load limits
- Check within working conditions
- contact the RopeSpinner Team.
Pilot Phase:
- Check rope Beal Industrie 11 mm or Petzl Axis 11 mm.
- Check to work as instructions
- Apply slow and controlled speed
- Check within load limits
- Check within working conditions
- contact the RopeSpinner Team.
Pilot Phase:
- Check rope Beal Industrie 11 mm or Petzl Axis 11 mm.
- Check within load limits
- Check within working conditions
- contact the RopeSpinner Team.
Drill is not in reverse mode. Set drill in reverse and drive the rope back through the rope exit Slit, controlled and very slowly.
- Do not use BagFrame to lift, shake or move rope bag
- Use rope bag with not more then 5 mm bag wall thickness
